XT56 Parts List

Parts list for XT56.

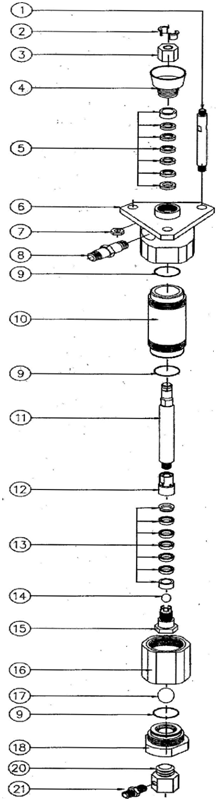

Lower parts

NO PART NO. DESCRIPTION Q’TY
1 560-101 TIE ROD 3
2 560-102 RING 2
3 560-103 COUPLING NUT 1
4 560-104 PACK-I NG NUT 1
5 560-105 PACKING STACK 1
6 560-106 HOUSING 1
7 560-107 NUT 3
8 560-108 NIPPLE, 1-3/4″ 1
9 560-109 O-RING, TEFLON 3
10 560-110 SLEEVE 1
11 560-111 ROD, DISPLACEMENT 1
12 560-112 HOUSING, BALL 1
13 560-113 PACKING STACK 1
14 560-114 BALL 1
15 560-115 PISTON 1
16 560-116 HOUSING 1
17 560-117 BALL, INTAKE 1
18 560-118 INTAKE 1
19 560-120 TUBE 1
20 560-121 NIPPLE, 1″ 1

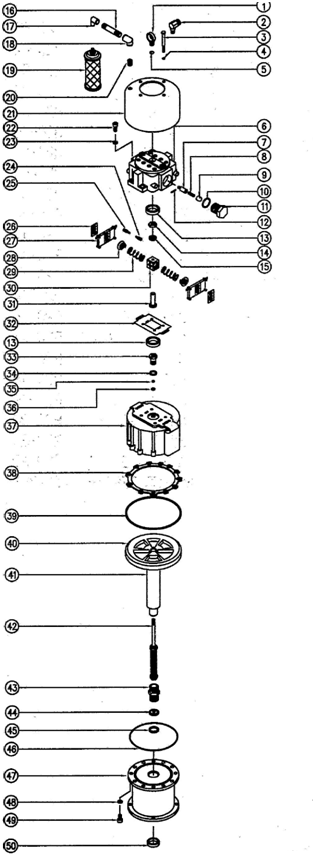

Upper parts

NO PART NO. DESCRIPTION Q’TY
1 800-101 RING 1
2 800-102 AIR INLET UNION 1
3 800-103 SCREW 4
4 800-104 LOCK WASHER 4
5 800-105 O-RING 1
6 800-106 AIR MANIFOLD 1
7 800-107 SPRING HOUSING 2
8 800-108 SPRING 2
9 800-109 GUIDE 2
10 800-110 O-RING 2
11 800-111 RETAINER 2
12 800-112 PIN 2
13 800-113 PAD 2
14 800-114 NUT 1
15 800-115 LOCK WASHER 1
16 800-116 NIPPLE 1
17 800-117 ELBOW 1
18 800-118 ELBOW 1
19 800-119 MUFFLER 2
20 800-120 NIPPLE 1
21 800-121 SHIELD 1
22 800-122 800=122 4
23 800-123 LOCK WASHER 4
24 800-124 SCREW 4
