XT73 Parts List

Parts list for XT73.

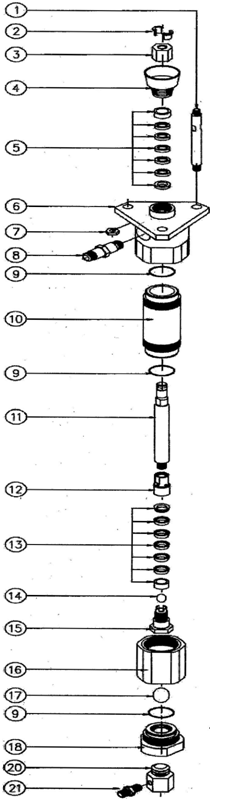

Lower parts

NO PART NO. DESCRIPTION Q’TY
1 730-101 TIE ROD 3
2 730-102 RING 2
3 730-103 COUPLING NUT 1
4 730-104 PACKING NUT 1
5 730-105 PACKING STACK 1
6 730-106 HOUSING 1
7 730-107 NUT 3
8 730-108 ‘NIPPLE, 1-3/411 1
9 730-109 O-RING, TEFLON 3
10 730-110 SLEEVE 1
11 730-111 ROD, DISPLACEMENT 1
12 730-112 HOUSING, BALL 1
13 730-113 PACKING STACK 1
14 730-114 BALL 1
15 - PISTON 1
16 730-116 HOUSING 1
17 730-117 BALL, INTAKE 1
18 730-118 INTAKE 1
19 730-120 TUBE 1
20 730-121 NIPPLE, 1′ 1

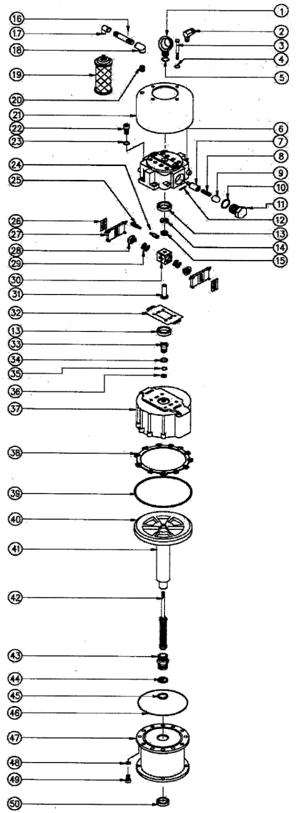

Upper parts

NO PART NO. DESCRIPTION Q’TY
1 830-101 RING 1
2 830-102 AIR INLET UNION 1
3 830-103 SCREW 4
4 830-104 LOCK WASHER 4
5 830-105 O-RING 1
6 830-106 AIR MANIFOLD 1
7 830-107 SPRING HOUSING 2
8 830-108 SPRING 2
9 830-109 GUIDE 2
10 830-110 O-RING 2
11 830-111 RETAINER 2
12 830-112 PIN 2
13 830-113 PAD 2
14 830-114 NUT 1
15 830-115 LOCK WASHER 1
16 830-116 NIPPLE 1
17 830-117 ELBOW 1
18 830-118 ELBOW 1
19 830-119 MUFFLER 2
20 830-120 NIPPLE 1
21 830-121 SHIELD 1
22 830-122 SCREW 4
23 830-123 LOCK WASHER 4
24 830-124 SCREW 4
25 830-125 NUT 4
26 830-126 PLATE SEAL 2
27 830-127 PLATE 2
28 830-128 VALVE 2
29 830-129 SPRING 2
30 830-130 VALVE HOUSING 1
31 830-131 HUB 1
32 830-132 GASKET 1
33 830-133 BEARING 1
34 830-134 GASKET 1
35 830-135 WASHER 1
36 830-136 V-PACKING 1
37 830-137 CYLINDER 1
38 830-138 BASE GASKET 1
39 830-139 O-RING 1
40 830-140 PISTON PLATE 1
41 830-141 PISTON ROD 1
42 830-142 TRIP ROD ASS'Y 1
43 830-143 STUD 1
44 830-144 U-PACKING 1
45 830-145 WASHER 1
46 830-146 O-RING 1
47 830-147 BASE ASS'Y 1
48 830-148 LOCK WASHER 12
49 830-149 SCREW 12
50 830-150 SEAL 1
