Specifications
| REQUIRES QUOTE | Yes |
|---|---|

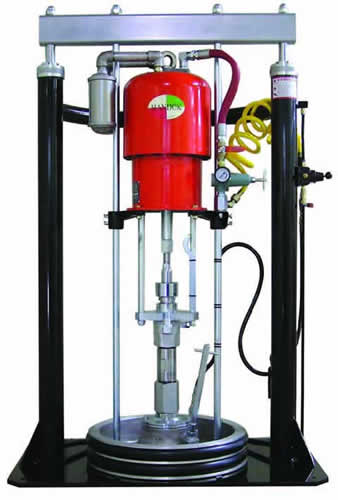

| SPEC/MODEL | DR-30 Extrusion Ram Pump |
| MAX DELIVERY | 22.9L/min |
| MAX PRESSURE | 210 bar |
| NOISE LEVEL | 75~85db |
| DIMENSION RAISED (METRICS) | W107×L64×H258 |
| DIMENSION LOWERED (METRICS) | W107×L64×H158 |
| WEIGHT (METRICS) | 278 kg |
| VISCOSITY | 1,000,000 CPS |
| DRUM SIZE | 200L |
Application
SiliconeSealantAdhesiveUndercoatingP.V.C. SolGreaseEtc.
Notes
- This equipment is designed to transfer and pump out high viscosity fluids from 200L to 20L pail can
- Priming piston airless pump produced by HANDOK can be used with semi-solid materials
- The equipment is used in the factory internal concentrated supply system which manually or automatically injects materials.
